A heat leak can hide in a wall. A hot spot can be hard to see. A thermal tool can help you find heat shifts fast.
The Klein TI290 Vs FLIR C5 guide shows the key specs. You can compare both tools before you choose.
Finding heat changes needs the right features. Start with the first unit.

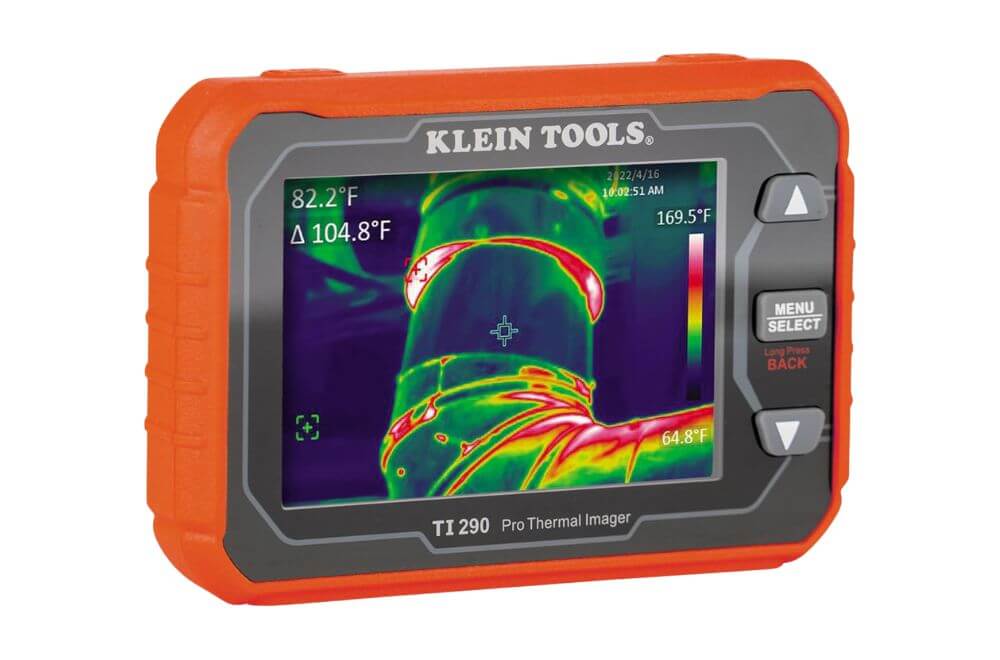

Klein TI290 Review
This handheld unit has a 320 x 240 thermal grid. That gives 76,800 thermal pixels.
It also has Wi-Fi, three color palettes, and a 2 m drop rating.
Pros and Cons
These are the main points to know.
| Type | Feature | Practical Impact |
| Pro | 320 x 240 grid | Gives 76,800 thermal pixels. |
| Pro | Wi-Fi | Lets you save and share images. |
| Pro | Three palettes | Gives three color choices. |
| Pro | 2 m drop rating | Rated for a 6.6 ft drop. |
| Con | MSX not listed | No MSX feature is listed. |
| Con | IP rating not listed | No IP rating is given. |
The high pixel count is a key feature. It gives you more thermal pixels in each image.
The unit also has high and low temp alarms. The alarm range goes from -4°F to 752°F.

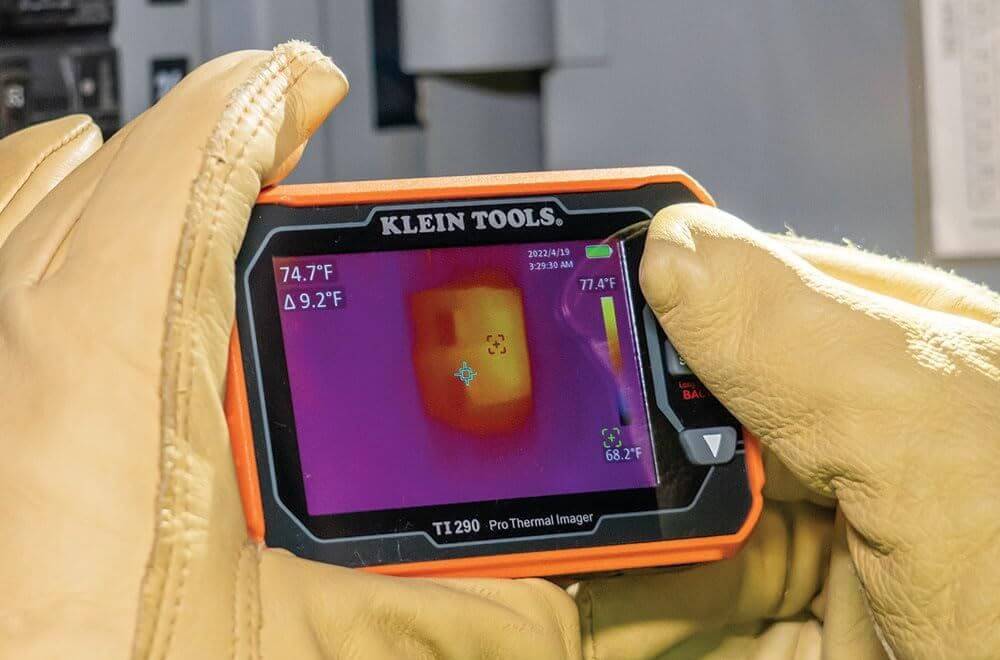

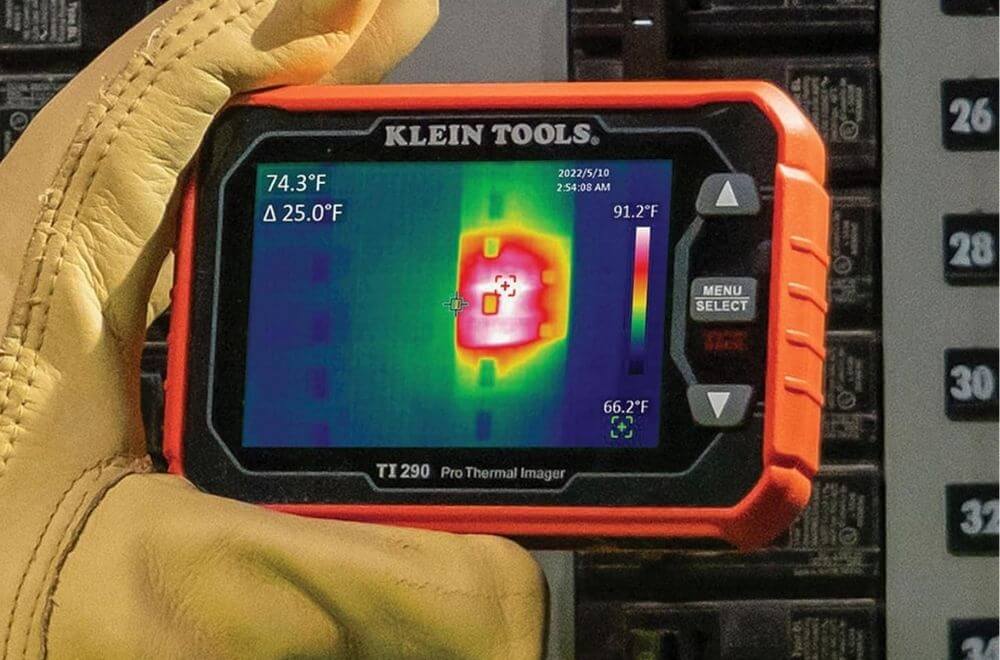

Practical Use
The unit has a 320 x 240 thermal grid. It gives you 76,800 thermal pixels.
You can choose ironbow, rainbow, or grayscale. Wi-Fi lets you capture, store, and share thermal images through the app.
The unit reads heat from -40°C to 400°C. It weighs 7.5 ounces.
Recommendation
The best fit depends on the features you need.
| User Type | Recommendation | Reason |
| Electricians | Good Fit | High thermal pixel count. |
| Inspection users | Good Fit | 320 x 240 thermal grid. |
| Wi-Fi users | Good Fit | Supports image sharing. |
| Wet-area users | Not Ideal | IP rating is not listed. |
The next unit uses a smaller thermal grid. It adds visual imaging and MSX.

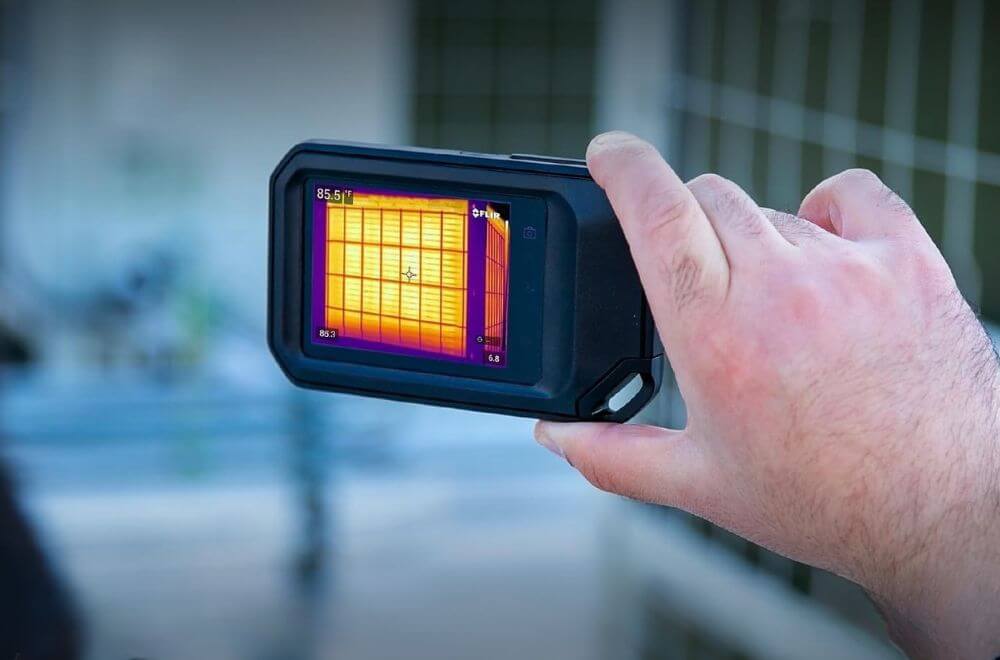

FLIR C5 Review
This compact unit combines thermal and visual images. It has a 160 x 120 thermal grid.
It also has 19,200 thermal pixels, a 5 MP visual camera, and MSX.
Pros and Cons
These are the main features and limits.
| Type | Feature | Practical Impact |
| Pro | MSX | Adds visual details to heat images. |
| Pro | 5 MP camera | Adds a visual image. |
| Pro | IP54 rating | Gives dust and splash protection. |
| Pro | FLIR Ignite | Supports cloud image uploads. |
| Con | Lower resolution | Has 19,200 thermal pixels. |
| Con | Touchscreen | Uses touch controls. |
The visual camera adds a separate image. MSX adds visual details to the thermal view.
Wi-Fi supports image uploads to cloud storage. The unit also supports reports and email sharing through the cloud service.
Practical Use
The camera reads heat from -20°C to 400°C. Its battery can run for up to four hours.
The listed charge time is two hours. The screen measures 3.5 inches.
The camera also has a built-in LED light. It uses Wi-Fi for FLIR Ignite cloud connectivity.
Recommendation
This model suits users who need thermal and visual data.
| User Type | Recommendation | Reason |
| Inspectors | Good Fit | MSX adds visual details. |
| Report users | Good Fit | Supports cloud reports. |
| Mobile users | Good Fit | Compact design. |
| High-resolution users | Not Ideal | Has fewer thermal pixels. |
The two models now have clear differences. The next section compares the key areas.

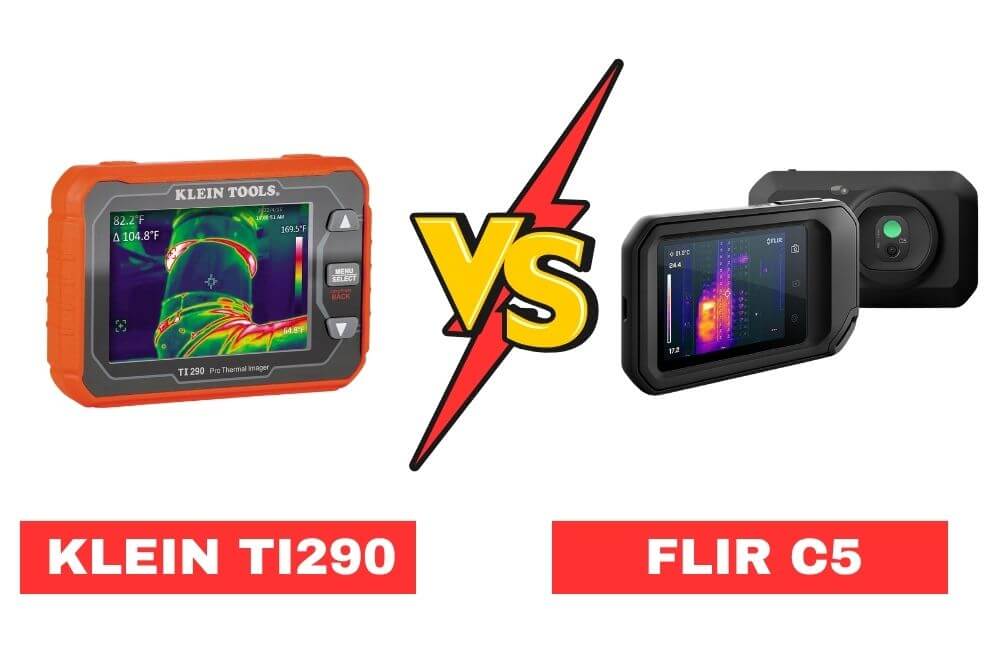

Detailed Comparison for Klein TI290 Vs FLIR C5
Both tools measure heat. Their main differences are easy to see.
One has more thermal pixels. The other adds visual and cloud features.
Performance: Klein TI290 Vs FLIR C5
The Klein TI290 has 76,800 thermal pixels. Its thermal grid is 320 x 240.
The FLIR C5 has 19,200 thermal pixels. It also adds a 5 MP visual camera and MSX.
| Feature | Klein TI290 | FLIR C5 |
| Thermal Grid | 320 x 240 | 160 x 120 |
| Thermal Pixels | 76,800 | 19,200 |
| Visual Camera | Not listed | 5 MP |
| MSX | Not listed | Yes |
The Klein TI290 has higher thermal resolution. The FLIR C5 has lower thermal resolution but adds MSX and a 5 MP visual camera.
Ease of Use: Klein TI290 Vs FLIR C5
The Klein TI290 uses physical buttons. The FLIR C5 uses a touchscreen.
Both models have a 3.5-inch screen. Both also support wireless image sharing.
| Feature | Klein TI290 | FLIR C5 |
| Controls | Physical buttons | Touchscreen |
| Screen | 3.5 inches | 3.5 inches |
| Wireless | Wi-Fi | Wi-Fi |
| Image Sharing | Klein Tools app | FLIR Ignite |
The Klein TI290 uses physical controls. The FLIR C5 uses a capacitive touchscreen.
Build Quality: Klein TI290 Vs FLIR C5
Both cameras have a 2 m drop rating. This equals 6.6 ft.
The FLIR C5 has an IP54 rating. An IP rating is not listed for the Klein model.
| Feature | Klein TI290 | FLIR C5 |
| Drop Rating | 2 m / 6.6 ft | 2 m / 6.6 ft |
| IP Rating | Not listed | IP54 |
| Design | Handheld | Compact |
Both models have a 2 m drop rating. The FLIR C5 also has an IP54 rating. The supplied Klein specifications do not list an IP rating.
Maintenance: Klein TI290 Vs FLIR C5
The Klein TI290 is rechargeable. It comes with a micro-USB charging cable.
The FLIR C5 can run for up to four hours.
| Feature | Klein TI290 | FLIR C5 |
| Battery | Rechargeable | Rechargeable |
| Charge Time | 3 hours | 2 hours |
| Battery Time | Not listed | Up to 4 hours |
| Image Storage | Klein Tools app | FLIR Ignite |
The Klein TI290 has a listed 3-hour charging time. The FLIR C5 has a 2-hour charging time and up to 4 hours of battery operation.
Value for Money: Klein TI290 Vs FLIR C5
The Klein TI290 gives you a much higher thermal pixel count. The FLIR C5 gives you fewer thermal pixels.
The C5 adds a 5 MP camera, MSX, and cloud connectivity. No price claim is made here.
| Feature | Klein TI290 | FLIR C5 |
| Thermal Pixels | 76,800 | 19,200 |
| Visual Camera | Not listed | 5 MP |
| MSX | Not listed | Yes |
| Cloud Connectivity | App | FLIR Ignite |
The Klein TI290 offers more thermal pixels. The FLIR C5 adds MSX, a 5 MP visual camera, and FLIR Ignite cloud connectivity.
Conclusion
Klein TI290 Vs FLIR C5 shows two clear feature sets. The Klein model has much higher thermal resolution.
The FLIR model adds MSX, a 5 MP visual camera, and cloud connectivity. Choose based on the features that fit your work.
Frequently Asked Questions
1. Which model has more thermal pixels?
The Klein TI290 has 76,800 thermal pixels.
2. Does the FLIR C5 have a visual camera?
Yes. The supplied specs list a 5 MP visual camera.
3. Does the Klein TI290 support Wi-Fi?
Yes. It supports Wi-Fi for image capture, storage, and sharing.
4. Which model has an IP54 rating?
The FLIR C5 has an IP54 rating.
5. Which model has higher thermal resolution?
The Klein TI290 has higher thermal resolution at 320 x 240 pixels.
