A quick heat check can turn into a slow hunt when the image lacks detail. That is where TOPDON TC001 vs TC001 Plus becomes a useful choice.
Both offer 256 × 192 thermal resolution and a 25Hz frame rate. The key difference is the extra visible-light lens and image fusion on the Plus.

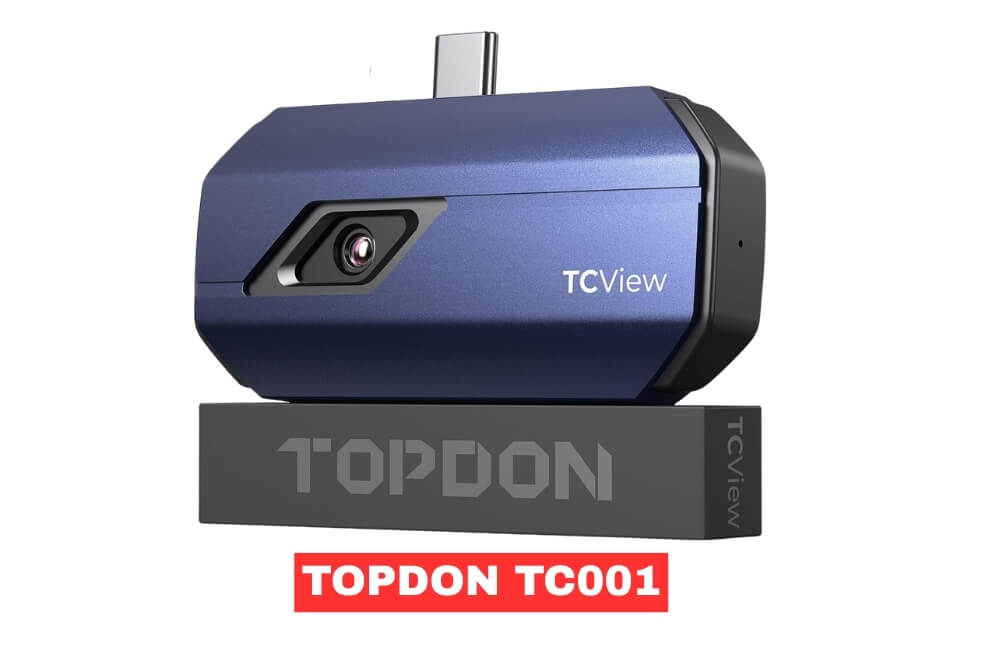

TOPDON TC001 Review
The TC001 keeps things simple. It connects to a phone, tablet, or laptop and uses the device screen for thermal viewing. It is small, light, and useful for quick checks around wires, pipes, heat loss, and HVAC parts.
Pros and Cons
The basic design works well for simple jobs. Still, a few limits are worth knowing before a purchase.
| Type | Feature | Practical Impact |
|---|---|---|
| Pro | 256 × 192 IR image | Shows clear heat patterns. |
| Pro | 25Hz frame rate | Keeps moving views smooth. |
| Pro | 30g body | Easy to carry all day. |
| Pro | 0.35W power use | Uses little device power. |
| Con | No visible-light lens | Fine details can be harder to place. |
| Con | Device-powered use | The phone or computer stays part of the setup. |
Simple Checks Feel Easy
The TC001 suits quick checks. A warm wire or cool pipe can stand out fast. The small body also makes tight spots less annoying.
The tool can show live heat changes. It can also make a waveform graph. Ten color palettes are available. These tools can help when a plain heat view feels hard to read.
Recommendation
The best fit depends on the job. A simple thermal check does not always need extra imaging features.
| User Type | Recommendation | Reason |
|---|---|---|
| Beginners | Good Fit | Simple setup and clear heat views. |
| DIY users | Good Fit | Useful for basic home checks. |
| HVAC users | Good Fit | Good for finding heat changes. |
| Detail-heavy users | Not Ideal | No visible-light lens. |
| Field users | Good Fit | Small and easy to carry. |

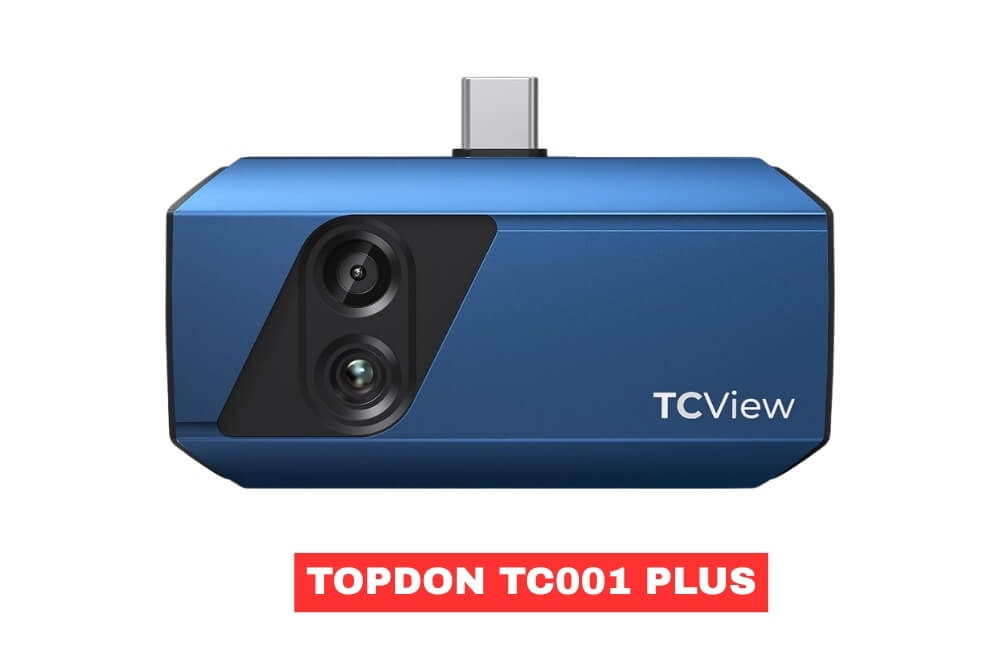

TOPDON TC001 Plus Review
The TC001 Plus keeps the same core thermal resolution but adds a 1MP visible-light lens. That extra view can make objects easier to place on the screen. It also uses image fusion to blend thermal and visible details. For pipes, circuits, engines, and other close work, that can save time.
Pros and Cons
The Plus adds useful image help without adding much bulk. There are still a few points to keep in mind.
| Type | Feature | Practical Impact |
|---|---|---|
| Pro | 1MP visible-light lens | Makes object outlines easier to see. |
| Pro | Image fusion | Links heat spots with real objects. |
| Pro | 256 × 192 IR resolution | Keeps the thermal view detailed. |
| Pro | 25Hz frame rate | Gives a smooth live view. |
| Con | Limited phone support | Some phone models are not supported. |
| Con | Extra image features | May be more than basic users need. |
Clearer Views Save Small Steps
With regular use, the dual-lens setup can feel handy. A hot part is easier to match with the real part on screen. That matters when several wires or pipes sit close together.
The Plus also supports continuous temperature checks and waveform graphs. Its listed accuracy is ±2°C or ±2% of the reading. The range reaches -20°C to 550°C.
Recommendation
The Plus makes more sense when image detail matters. For simple heat checks, the extra features may not be needed.
| User Type | Recommendation | Reason |
|---|---|---|
| Electricians | Good Fit | Better object detail can help. |
| HVAC users | Good Fit | Heat spots are easier to place. |
| Auto users | Good Fit | Useful around engine parts. |
| Basic DIY users | Not Ideal | Extra imaging may go unused. |
| Inspectors | Good Fit | Dual views help with visual checks. |

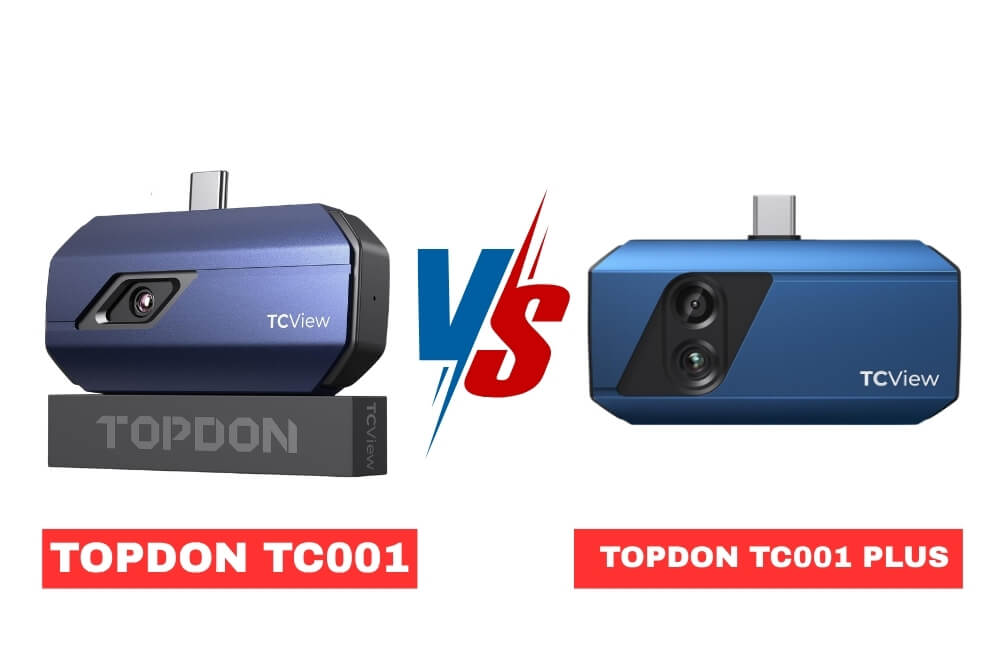

Detailed Comparison for TOPDON TC001 vs TC001 Plus
Both tools share the same main thermal base. The real choice comes down to image detail, ease, and how much help is needed during a check.
Performance: TOPDON TC001 vs TC001 Plus
Both use a 256 × 192 thermal sensor. Both also use a 25Hz frame rate. So the core thermal view is quite close.
The Plus gains an edge through its visible-light lens. It can blend both views. That helps when a heat spot is hard to place.
| Feature | TC001 | TC001 Plus |
|---|---|---|
| IR Resolution | 256 × 192 | 256 × 192 |
| Frame Rate | 25Hz | 25Hz |
| Visible Lens | No | 1MP |
| Image Fusion | No | Yes |
| Thermal View | Strong | Strong |
- TOPDON TC001 Rating: 8.5/10
- TOPDON TC001 Plus Rating: 9/10
Ease of Use: TOPDON TC001 vs TC001 Plus
The TC001 has a clean and simple setup. Plug it into a supported device and start checking heat. That can be nice when speed matters.
The Plus adds more ways to view the target. The extra lens may take a little time to learn. Once set, it can make object finding easier.
| Feature | TC001 | TC001 Plus |
|---|---|---|
| Basic Setup | Simple | Simple |
| Thermal View | Yes | Yes |
| Visible View | No | Yes |
| Fusion View | No | Yes |
| Learning Curve | Low | Low to medium |
- TOPDON TC001 Rating: 9/10
- TOPDON TC001 Plus Rating: 8.5/10
Build Quality: TOPDON TC001 vs TC001 Plus
Both units are compact. Both weigh 30g. Both use a small body that is easy to keep in a tool bag.
The Plus adds the dual-lens setup while keeping the same listed weight and compact size. The official product page also lists drop protection up to 1m.
| Feature | TC001 | TC001 Plus |
|---|---|---|
| Weight | 30g | 30g |
| Size | 71 × 42 × 14mm | 71 × 42 × 14mm |
| Lens Setup | IR | IR + visible |
| Portability | Excellent | Excellent |
| Drop Protection | Not listed | Up to 1m |
- TOPDON TC001 Rating: 8.5/10
- TOPDON TC001 Plus Rating: 9/10
Maintenance: TOPDON TC001 vs TC001 Plus
Neither tool needs a built-in battery charge. Both are powered through the connected device. That removes one small task from a busy day.
The Plus adds another lens, so keeping the front clean matters more. A soft cloth can help keep both views clear.
| Feature | TC001 | TC001 Plus |
|---|---|---|
| Built-in Battery | No | No |
| Device Powered | Yes | Yes |
| Lens Care | Simple | Needs care for two lenses |
| Cleaning | Easy | Easy |
| Daily Upkeep | Low | Low |
- TOPDON TC001 Rating: 9/10
- TOPDON TC001 Plus Rating: 8.5/10
Value for Money: TOPDON TC001 vs TC001 Plus
The TC001 can make sense when the main goal is basic thermal work. It covers the core need without the extra visible view.
The Plus makes more sense when that extra view can save time. For close work, the fused image can reduce small moments of guesswork. For simple heat checks, those features may sit unused.
| Feature | TC001 | TC001 Plus |
|---|---|---|
| Core Thermal Work | Excellent | Excellent |
| Extra Visual Detail | Limited | Strong |
| Basic Jobs | Strong value | Good value |
| Detailed Jobs | Fair value | Strong value |
| Best Buyer | Simple-use buyer | Detail-focused buyer |
- TOPDON TC001 Rating: 9/10
- TOPDON TC001 Plus Rating: 9/10
Conclusion
TOPDON TC001 vs TC001 Plus comes down to how much visual detail is needed. The TC001 is a smart pick for simple thermal checks. The TC001 Plus is better when visible details and image fusion can save time.
Authoritative References
These official sources support the main specs, lens details, temperature range, and compatibility points used above.
| Reference | What It Supports | Source |
|---|---|---|
| TC001 Product Page | Resolution, frame rate, weight, range, app features | Official TC001 page |
| TC001 Plus Product Page | Dual lens, image fusion, resolution, range, accuracy | Official TC001 Plus page |
| TC001 Product Profile | Core technical specifications | TC001 Product Profile PDF |
| TC001 Plus User Manual | Resolution, lens, accuracy, temperature range | TC001 Plus User Manual |
FAQs
Is TC001 Plus better than TC001?
The Plus is better when visible details matter. Its extra lens and image fusion can make heat spots easier to place.
Does TC001 Plus have better thermal resolution?
No. Both models use a 256 × 192 IR resolution. The main upgrade is the added visible-light view and image fusion.
Does TC001 have a 25Hz frame rate?
Yes. The official specifications list a 25Hz frame rate for the TC001.
What is the temperature range?
Both models cover -20°C to 550°C. Both also offer temperature measurement resolution down to 0.1°C.
Which one should you choose?
Choose the TC001 for simple thermal checks and lower feature needs. Choose the TC001 Plus when clearer object detail and image fusion matter more.
